GUARD M
PARAPEITO DE FIXAÇÃO EM CHAPA CANELADA

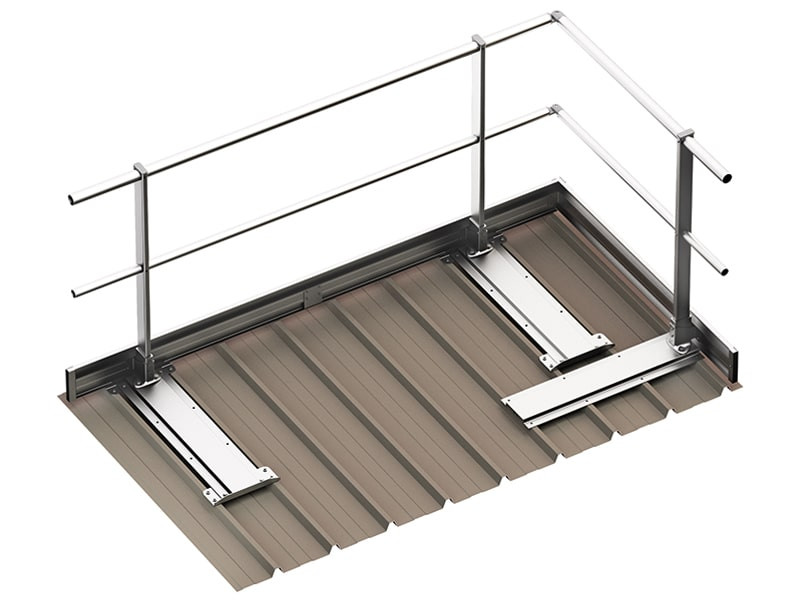

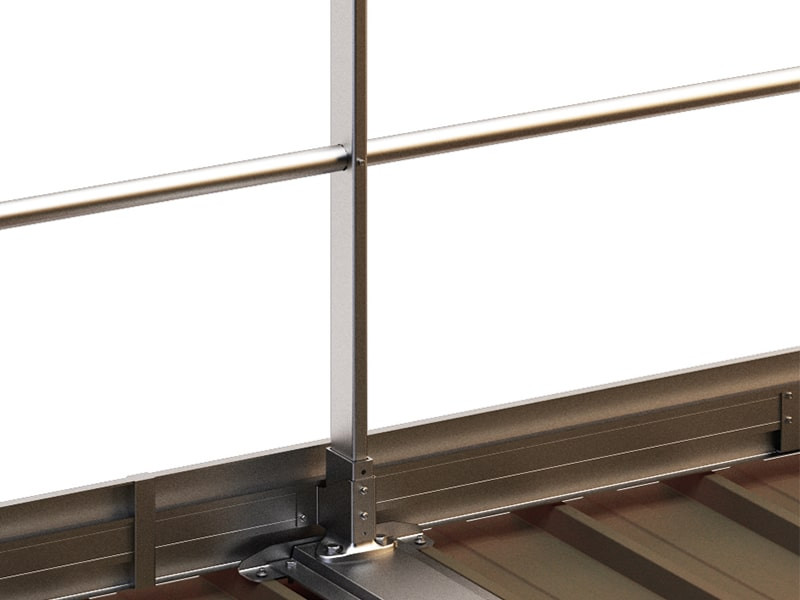

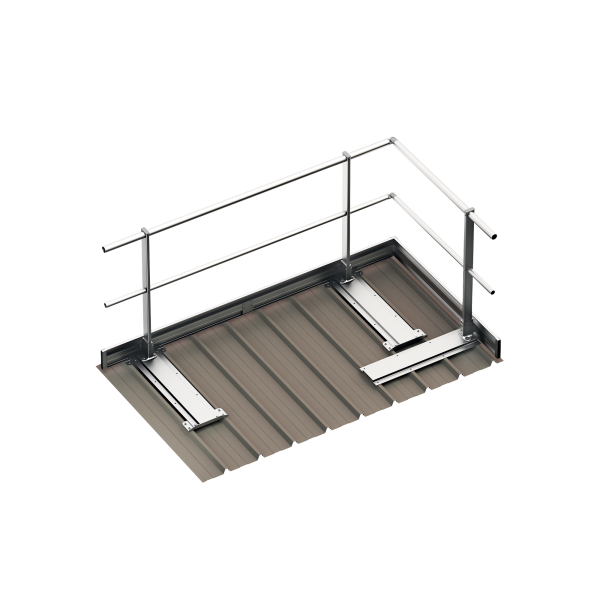

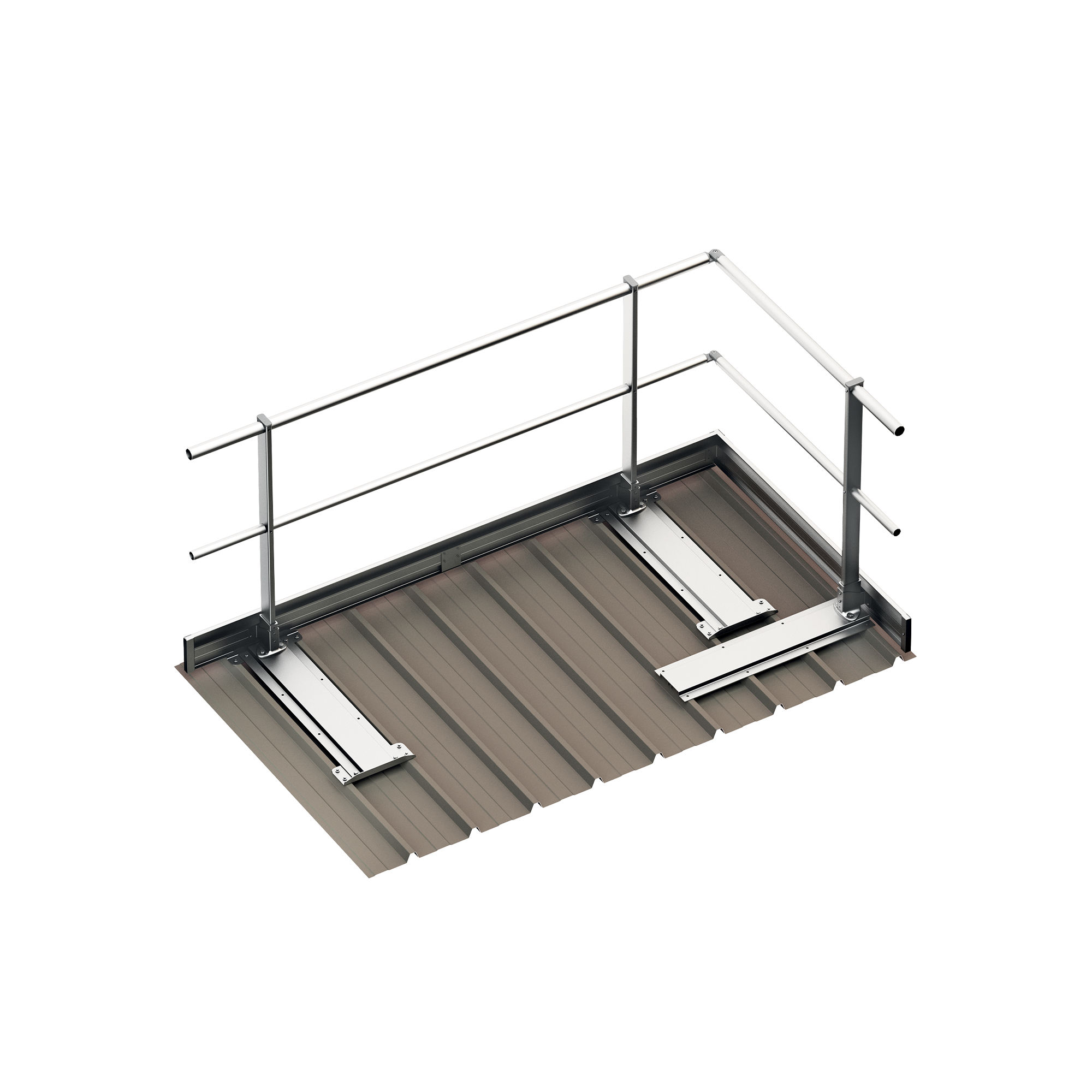

GUARD M é um parapeito inovador: as placas de montagem especiais para chapa canelada fazem dele o sistema ideal para coberturas industriais.
As chapas de fixação estão disponíveis nos dois tamanhos mais comuns de entre-eixo das ondas. Dois tipos de chapas disponíveis: longitudinais e transversais ao eixo das ondas. A montagem é fácil e rápida: os componentes são encastrados com parafusos auto-perfurantes, incluídos na embalagem. Em liga de alumínio, o parapeito é extremamente leve.
GUARD M, o parapeito específico para ambientes industriais
Documentação
-
Ficha técnica
-
Manual de instalação
CORRENTES E CORRENTES INTERMEDIÁRIOS
| CÓDIGO | descrição | pçs |
|---|---|---|
| RBGBAR45 | Ø45 mm handrail with flush-mounted ring nuts L = 3000 mm | 1 |
| RBGBAR35 | Ø35 intermediate rail with flush-mounted ring nuts L = 3000 mm | 1 |
| RBGCAP | - | 1 |
VERTICAIS
| CÓDIGO | descrição | pçs |
|---|---|---|
| RBGSUP110 | straight upright H = 1105 mm groove Ø45 mm | 1 |
| RBGSUP118 | straight upright H = 1182 mm groove Ø45 mm | 1 |
| RBGSUP115I | inclined upright H = 1157 mm groove Ø45 mm | 1 |
| RBGSUP760WH | staight strut 760 mm high without intermediate rail | 1 |
EIXO DE PÉ E ACESSÓRIOS
| CÓDIGO | descrição | pçs |
|---|---|---|
| RBGTB | toe board 3000 x 150 x 19 mm | 1 |
| RBGTBJUN | - | 1 |
| RBGTBCOR | - | 1 |
| RBGTBCAP | - | 1 |
| RBGTBH | support for toe board H = 150 mm | 1 |
BASI PER FISSAGGIO SU LAMIERA GRECATA
| CÓDIGO | descrição | pçs |
|---|---|---|
| RBGBASE250PA | plate for fastening to trapezoidal sheet metal, pitch 250 mm, parallel to trapezoidal sheet metal (excluding Screws) | 1 |
| RBGBASE333PA | plate for fastening to trapezoidal sheet metal, pitch 333 mm, parallel to trapezoidal sheet metal (excluding Screws) | 1 |
| RBGBASE250PE | plate for fastening to trapezoidal sheet metal, pitch 250 mm, perpendicular to the frets (excluding screws) | 1 |
| RBGBASE333PE | plate for fastening to trapezoidal sheet metal, pitch 333 mm, perpendicular to trapezoidal sheet metal (excluding screws) | 1 |
ACESSÓRIOS
| CÓDIGO | descrição | pçs |
|---|---|---|
| RBGCAP45 | cap for handrail Ø45 mm | 1 |
| RBGCAP35 | cap for intermediate rail Ø35 mm | 1 |
| RBGCOR45 | - | 1 |
| RBGCOR35 | angle bracket for intermediate rail Ø35 mm | 1 |
| RBGCORAL | - | 1 |
| RBGBASEHKIT | waterproofing kit for GUARD H base | 1 |
| RBGWALL45 | end element for handrail Ø45 mm | 1 |
| RBGWALL35 | end element for intermediate rail Ø35 mm | 1 |
| RBGWALLAL | aluminium end element for handrail and intermediate rail | 1 |
PARAFUSOS DE FIXAÇÃO
| CÓDIGO | descrição | pçs |
|---|---|---|
| RBGSCR4825 | stainless steel self-drilling screw 4,8 x 25 mm | 25 |
| RBGSCR810 | grub screw M8 x 10 (spare part) | 1 |
| RBGSCR4816 | stainless steel self-drilling screw 4,8 x 16 mm | 25 |
SISTEMA RECLINABILE
| CÓDIGO | descrição | pçs |
|---|---|---|
| RBGSUP110F | pull-down upright H = 1105 mm groove Ø45 mm | 1 |
| RBGSUP100F | pull-down upright H = 1010 mm groove Ø45 mm | 1 |
| RBGBAR45F | handrail without flush-mounted ring nuts Ø45 mm L = 3000 mm | 1 |
| RBGBAR35F | handrail without flush-mounted ring nuts Ø35 mm L = 3000 mm | 1 |
